PCIe PCI-E PCI Express Card Laptop EXP GDC Laptop External Independent Video Card Dock (NGFF M.2 A key interface Version)

(2 customer reviews)
  • Fast Shipping

    Receive products in amazing time
  • Easy Returns

    Return policy that lets you shop at ease
  • Always Authentic

    We only sell 100% authentic products
  • Secure Shopping

    Your data is always protected

$81.94 $117.06

In stock

SKU: 32662292718 Category:

Description

PCIe PCI-E PCI Express Card Laptop EXP GDC Laptop External Independent Video Card Dock (NGFF M.2 A key interface Version)
Overview:
EXP GDC is the laptop external graphics adapter equipment; it can help you to use the external independent high-performance graphics, can be used to access any of the PCI-E interface equipment, used to enhance the performance of the laptop, so that you can play those huge games requesting high-performance graphics;

HTB1x1YSJVXXXXaEXFXXq6xXFXXXz

Notice:

1. This is the DIY product, need some basic computer knowledge and practical ability. we advise that you study carefully this from our WIKI before you purchasing.
WIKI address:
www.raspberrypiwiki.com/index.php/EXP_GDC
    (We will regularly update the product’s knowledge on WIKI);
2. We advise that read the USER MANUAL carefully after you receive our product. (User manual be send to you with EXP GDC equipment).
3. The product is not suitable with any kinds of laptop model becuase of
the compatibility,
Please read the details clearly or consult with us before purchasing.
4. Please select your EXP GDC version according your laptop wireless network card; Sometime you need to uppack your loptop to confirm it if you don’t know which interface.
5. In generally, the laptops after 2015 would be used the NGFF slot.
6. Using notice:
1/ Turn off PCI-E energy saving options in the power management system and BIOS, it can avoid the system stagnation as a reason long standby.
2/ Please install your device according to the manual, do not plug in or out your equipment when power on.

EXP GDC versions according to the difference of interface types:

  • Mini Pci-e Version
  • Express Card Version
  • NGFF M.2 A key Version
  • NGFF M.2 M key Version

Interface Types:

The EXP GDC has to be used with the built-in wireless card interface of the laptop.
The laptops without Expresscard interface have to be disassembled to confirm the Wireless card interface type.
Different version laptops, the interface is not the same, here is the interface introduction:
  • Expresscard  interface in the left and right sides of the notebook, the width is 3.4CM or 5.4CM. The height is 5MM, the depth is about 7CM, the attention is screened.
HTB1DQlqJpXXXXX9XVXXq6xXFXXXb
The Expresscard interface has a row 26 PIN contact, our adapter supports 54# and 34#.
  • Other notebook need to disassemble the installation, use the wireless network card interface, namely Mini PCI-E or NGFF.

NGFF&Mini PCI-E

Inner Screen Usage:

  1. Your laptop must be Intel (R) HD graphics.
  2. Your external graphics card must be above GTS450, otherwise you must use external monitor.

Recommended Graphics Card:

The list of recommended graphics card:
GTX650 GTX660 GTX670 GTX750 GTX760 GTX950
GTX960 GTX970 GTX980 GTX1060 GTX1070 GTX1080

And for other graphics cards, may be they can also be used, but the compatibility and performance are not as good as the cards in list. So we do not recommend to buy.

For GTX 1060 1070 1080

They are compatible with EXP GDC, but you must install the Auguest 2016 driver(372.70 version). And GTX 1080 is the most powerful we Recommend.
For
GTX1050 GTX1030 GTX1050(Ti) GTX1070Ti GTX1080Ti
The technician tell us that these cards are new product and the drive is not perfectly to support this product. So, we do not recommend you to buy it.

Features:

  • Support for PCI-E X16, actual X1 mode (according to different notebook configuration can be upgraded to X2 mode
  • Products: notebook PCI-E expansion device
  • roduct positioning: notebook performance upgrade.
  • Operating system: Windows XP/7/8/8.1, Linux etc.
     (PS: Win XP, Win8/8.1 is only compatible with the laptop with external screen)
  • Power support:
8P interface: 220W max.
DC interface: 150W max
Note: the power limit without ATX cable.
  • Extended support:
    PCI-E X16:DMI GT/s (X1) 5

Upgrade:

1. Dual TD compatible switch (hardware conflict resolution)
2. Multistage anti interference circuit
3. Data line reinforcement
4. Multi power automatic switching (support for soft start)
5. High quality imported electronic components
6. Support metal cabinet (optional)
7. Double copper technology to enhance system power supply
8. Isolation protection circuit
9. LED status indicator
10. USB interface extension
11. Lateral 6PIN power supply interface

Packing List:

  • 1 x EXP GDC PCI-E adapter
  • 1 x NGFF cable (100cm Length)
  • 1 x ATX PSU power cable (about 7cm Length)

EXP GDC Application:

001



Hardware Installation:

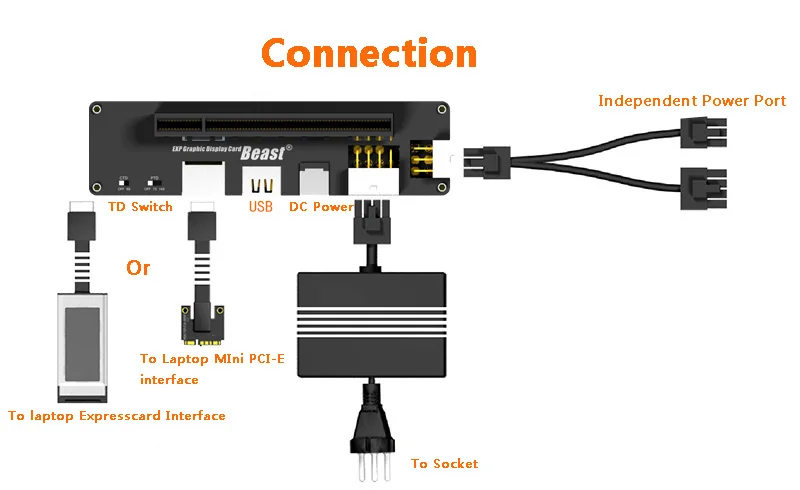

Connection diagram:





002-1002-2

Installation method with external power:

002-3
The other end is connected to the data line interface board corresponding to the “reference chart”. The HDMI EXP GDC board can not be connected with other HDMI data line, otherwise it will cause equipment damage.
The graphics card and power supply installation(DELL DA-2/D220P), please ensure that the video card power supply interface fully connected
NOTICE:
Must  restart  the laptop after the equipment  is installed;
MUST POWER OFF when you pull out or pull in the device, OR the device easily be damaged.

ATX Power supply installation method:

ATX-Power Supply Cable Connection

Note: Graphics card Independent power supply comes from ATX.





More FAQ please refer to this website:
www.raspberrypiwiki.com/index.php/EXP_GDC
Customer questions:
Q 1: My laptop is xxx-xxx, will my laptop compatible with the EXP GDC?
Answer:
Laptops released after year 2007 almost all fit EXP GDC when they have mini PCI-E slot or EXPRESSCARD slot.
Q 2: What power supply should I use?
Answer:
We only offer ATX cable with the package to power the EXP GDC.Please choose external power for your graphics card.
6P power output:
The maximum provides the interface output 6PIN+8PIN, maximum support 12A, maximum support 18A output with the motherboard and the. If more than 220W using power card please with ATX cable, ATX power supply used for the graphics.
8P power supply interface:
The main board and the equipment of the power supply interface, support soft switch function (notebook starting power starting, notebook shut down power off). The power of this interface, you can use 1 special DELL 220W, 2, can be matched with ATX cable using the ATX power to support external graphics power, soft switching function.
DC power supply interface:
Support DC 12 volt power supply input interface type outer diameter 5.5MM, inner diameter 2.1MM, maximum power 150W, support the soft switch function.
Q 3: Could it work with its own monitor?
Answer:
If you use the AMD series card,it must to connect with the external monitor to use.
If you use N series card which over GTS450, and  your laptop own Intel Core graphics ,and use the DIY GPU software to set,then it can use the laptop internal monitor,otherwise,it need to connect with the external monitor.
(Please download it on the wiki page)





Additional information

Weight 0.27 lbs
Dimensions 18 × 11 × 6 in
Brand Name

Geekworm

Type

Laptop Docking Stations
